Underwater Acoustic Testing

Tools to Evaluate Sonar System and Counter Measure Performance, and Conduct Research and Training

Underwater acoustic testing typically involves the generation of complex signal configurations that mimic the acoustic signature of a ship, submarine, or torpedo.

Any application requiring underwater acoustic generation or underwater vibration generation can be performed with SignalSound exciters. Data Physics can provide turnkey underwater acoustic testing systems for applications ranging from mine sweeping to oceanographic research.

The SignalSound wide band calibration source features 20 Hz - 100 kHz frequency range and SPL up to 200 dB.
Loading the The SignalSound wide band calibration source

Acoustic Range Calibration

Acoustic range calibration, or acoustic ranges, is used for the measurement of a vessel’s acoustic signature so that mechanical defects that enhance that signature can be eliminated. The calibration of these ranges requires accurate, wideband projector systems with a low frequency capability.

Data Physics SignalSound calibration system has a very wideband capability with excellent beam patterns for the calibration of acoustic ranges and acoustic data gathering installations.

Sonar Signal Generation and Measurement

Data Physics SignalSound systems are able to generate all the narrow band lines, broad band noise, modulation effects and transients that are associated with the acoustic signatures of ships and submarines. SignalSound can also generate sonar pulses as an echo repeater to interact with active sonar.

The Data Physics SignalSound UW-350 acoustic generator provides low frequency underwater sound generation
The Data Physics SignalSound UW-600 acoustic generator provides very low frequency underwater sound generation

Sonar Training

Sonar training is performed principally for the operators of passive sonar so they can learn to identify the acoustic signatures of submarines and ships, to be able to differentiate between different platforms, and to be able to track and prosecute a target. Data Physics can offer a range of towed acoustic targets, static targets, and acoustic enhancements for ships and submarines to augment their normal signature.

Mine Sweeping

Mine sweeping involves detecting and disposing mines, and a minesweeper is a naval warship designed to negate the threat posed by naval mines. Data Physics produces a high power, very low frequency acoustic projector system that may be used as part of a combined sweep or multi-influence sweep system. These signal generators and underwater noise generators are designed to include long term operation and survivability.

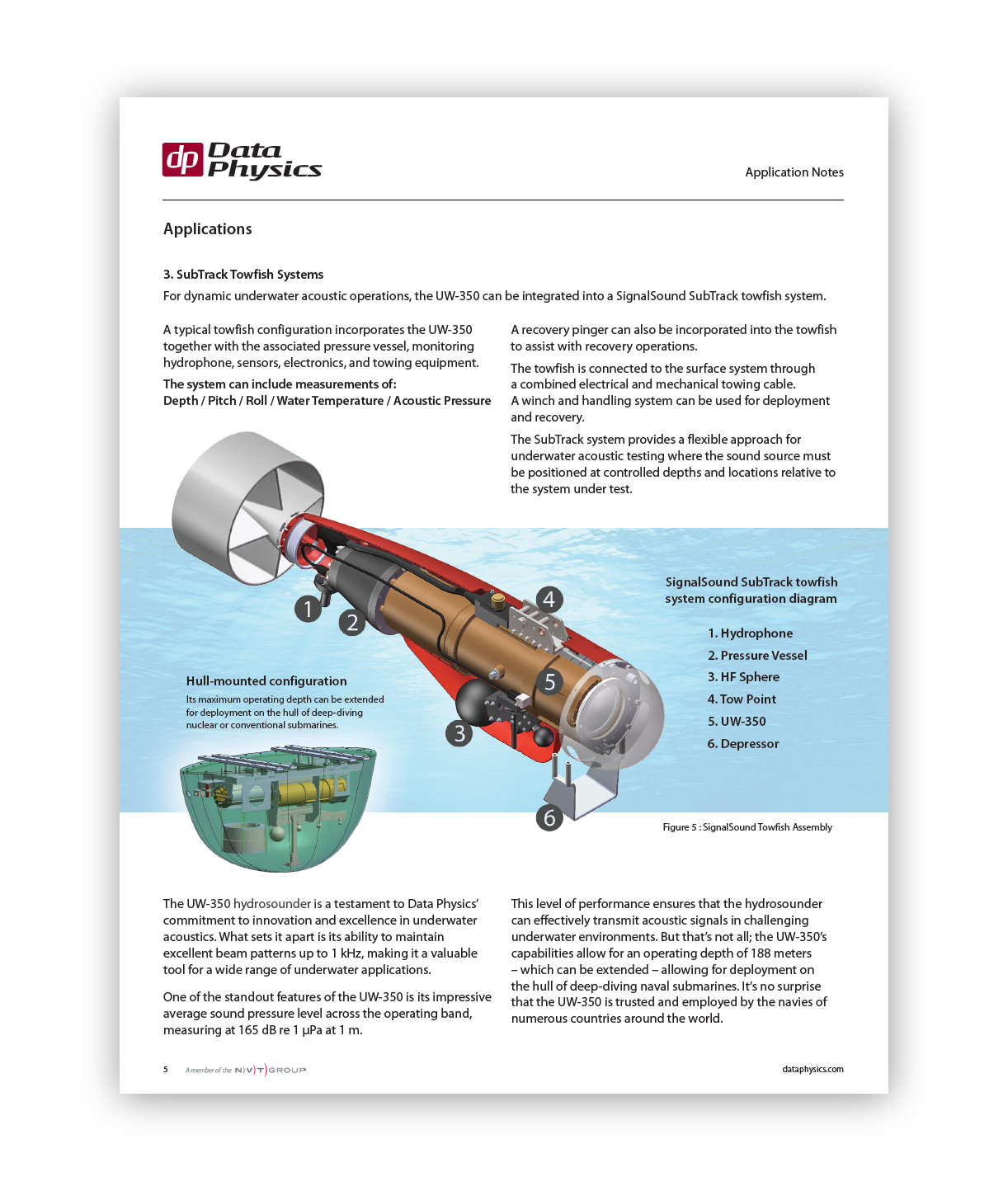

The Data Physics SignalSound SubTrack acoustic generator provides all the necessary features for underwater sonar target generation
