High Intensity ACOUSTIC TESTing equipment
A Full Suite of Proven Acoustic Test Products and Services for RATF, PWT, or DFAT Testing
Whether testing a spacecraft in a reverberant acoustic test facility (RATF) or a component in a progressive wave tube (PWT), the principals of operation are the same. Both types of facilities require a compressed flow of air or nitrogen, noise sources, test chambers, and acoustic control systems. Data Physics can offer both expertise and equipment for new facility development as well as repair and service of existing facilities.
For new facility development, Data Physics can act as a primary subcontractor on any RATF or PWT project.
Capabilities include concept and preliminary design, supply of specialty equipment, design and construction meetings, startup activities, acceptance testing, training, and documentation.
High intensity acoustic test facilities represent a significant investment, and SignalSound services and support can help extend that investment. Trained technicians can repair noise sources, amplifiers, and cooling units, and existing test facilities can be upgraded with the latest acoustic controllers, dynamic signal measurement systems, noise sources, amplifiers, cooling units, and horns.
Download our Customer Support Services Brochure to see our program options in greater detail.
Looking for Ling Electronics shakers, amplifiers, high-intensity sound transducers, or service? You can find them here. In 2009, Data Physics acquired Ling Electronics from Qualmark. The legendary Ling Electronics products have become the Data Physics “LE” product range – continuing a legacy of quality and performance in environmental vibration testing that you can trust.
SignalSound Acoustic Power Generators
Electropneumatic Transducers for Generating High Intensity Acoustic Noise for Aerospace Environmental Qualification Testing
Data Physics offers Acoustic Power Generators to cover both low and high frequency use. These acoustic power generators, or APGs, are often called electropneumatic transducers or EPTs.
The SignalForce LE-APG-10K is a high frequency noise generator that produces 10 kW of acoustic power with a gas flow of 1500 scfm. The spectrum from the APG-10K can be shaped and controlled in 1/3 octave bands up to the 1.25 kHz band, and acoustic power is produced above 1.25 kHz through the useful distortion of the power in the lower-frequency bands. The APG-10K is fully compatible with the older Ling Electronics EPT-200 design.
For lower-frequency acoustic power generation, the LE-APG-10K (LF), is available with direct control of the spectrum through the 200 Hz 1/3 octave band.

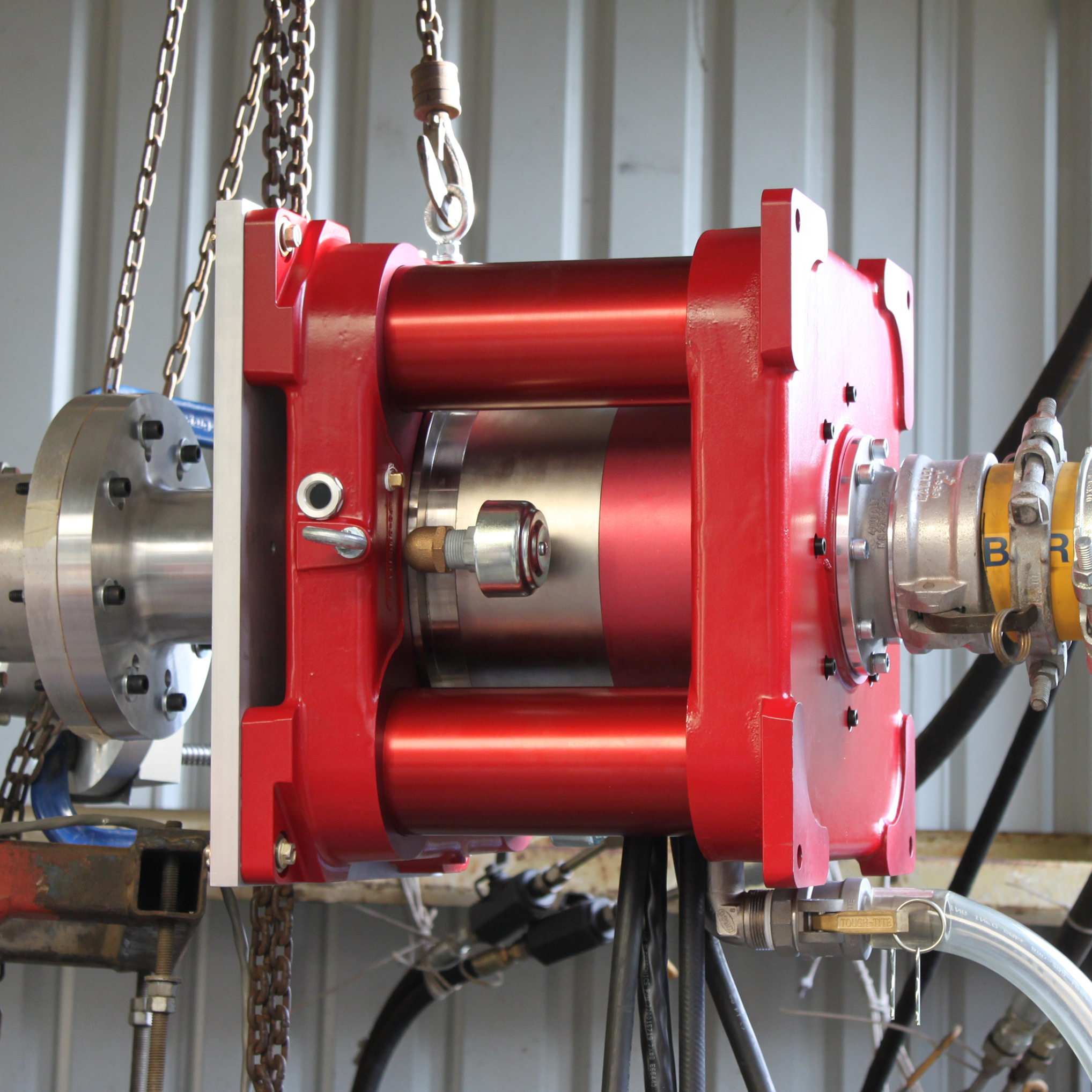

SignalForce LE-APG-10K
SignalForce LE-APG-10K (LF)
Acoustic Control for Reverberant Acoustic Test Facilities (RATF), and Progressive Wave Tubes (PWT)
The SignalSound Random Acoustic Controller is designed to be used with a Reverberant Acoustic Test Facility (RATF) or a Progressive Wave Tube (PWT) to simulate high-intensity acoustic noise similar to that experienced during a rocket launch or high-speed flight.
The Random Acoustic Controller runs on the Data Physics Abacus hardware. Abacus is ideal for acoustic testing with high dynamic range and excellent channel-to-channel phase matching. Up to 32 input channels can be used for microphone measurements and up to 8 output channels can be used to drive separate acoustic noise sources in di¬fferent frequency bands. Random acoustic control supports 1/1 octave, 1/3 octave, and narrowband control. A local throughput disk in the ABACUS hardware enables continuous throughput to disk of time history data for post processing.
Safety of the test article is at the forefront of the controller design, and a range of safety checks provides protection for the test article.
The Random Acoustic Control software provides extensive display and analysis capability during a test. The test operator may view time and frequency domain data (narrowband or nth octave) from all active channels during the test. Averaged control signals can be overlaid with reference and tolerance profiles.
MIMO Acoustic Control for Direct Field Acoustic Testing
Direct Field Acoustic Testing is an alternative to Reverberant Field Acoustic Testing (RFAT). DFAT testing is performed with guidance from NASA-HDBK-7010 – “DIRECT FIELD ACOUSTIC TESTING (DFAT)”
DFAT has certain advantages over RFAT in lower costs of equipment needed to generate the acoustic field and reduced facility and overall infrastructure costs.
The MIMO acoustic controller creates a diffuse acoustic field within the speaker ring
The Direct Field Acoustic Controller from Data Physics employs the Multiple Input Multiple Output (MIMO) control technology developed by Data Physics for its multi shaker vibration controllers to achieve the required sound pressure levels while ensuring a uniform sound field.
