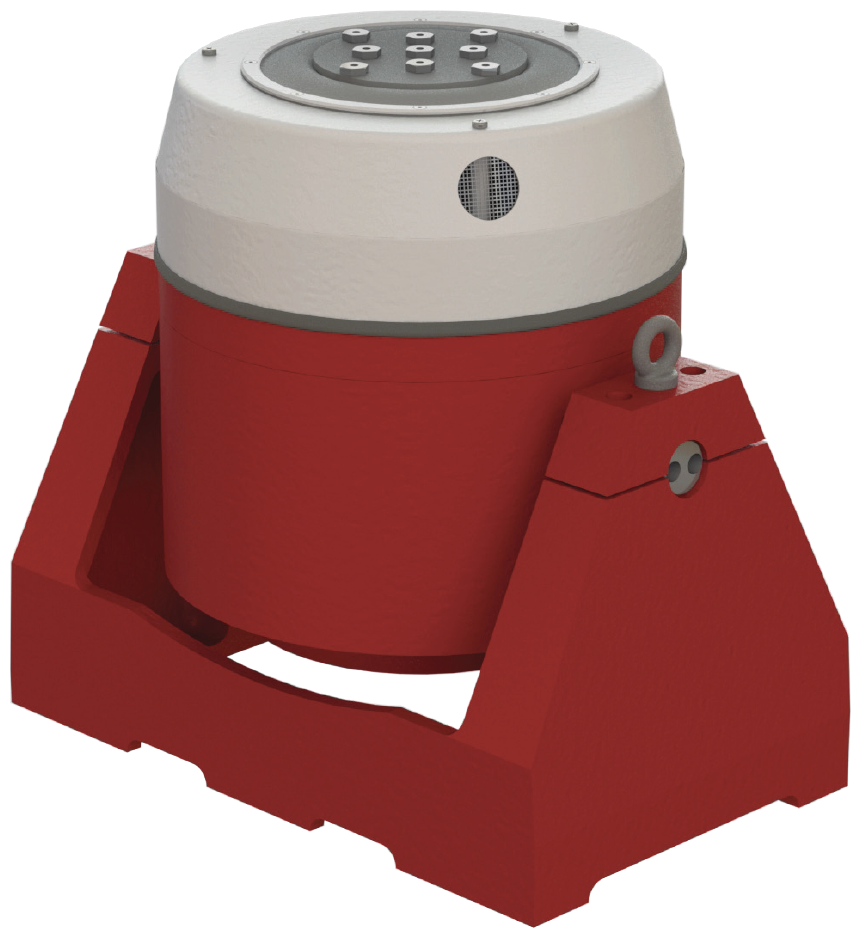

AIR COOLED SHAKERS

Air Cooled Electrodynamic Shakers for Just About Any Vibration Test Need

Electrodynamic (ED) air cooled shakers are lower cost, more versatile and easier to install and maintain than water cooled shakers. Air cooled shakers are workhorses for sine, random, shock, transient mixed mode and long time history replication applications. High displacement options are available for requirements such as transportation testing and classical shock testing. High lateral and torsional stiffness ensure maximum stability and support.

Air-cooled electrodynamic shakers are a popular choice for many component testing applications, such as automotive assemblies and consumer electronics equipment. Many shaker models feature axial guidance bearings and 2 inches (50 mm) of displacement, with our largest air-cooled model offering 3 inches (76.2 mm) continuous displacement. Data Physics’ range of electrodynamic air-cooled shakers have found application testing in Formula 1 racing cars, mobile telephones, health & safety type approvals, materials analysis, avionics systems and electronic sub-systems testing.

Previous
Next

Small Shaker Range

Force outputs from 2 lbf (9 N) to 1500 lbf (6670 N)

Data Physics’ range of small shakers is in use all over the world. Some have even been taken into space for special experiments under zero gravity conditions. Applications include medical research, electronic component testing, materials analysis, automotive component testing, tire balancing and actuator applications for antenna positioning using special, low-axial stiffness suspension units.

All cooling blowers for these shakers include noise reduction silencers, all models feature high levels of efficiency.

  • Exceptional axial and torsional stability
  • Special suspension unit options
  • Beryllium copper suspension
    for V2 and V4
  • Trunnions for V4, V20, and V55
  • Three axis testing configurations
    for V20 and V55
  • Monobases for V20 and V55
  • Metric & imperial table threads
  • Standard trunnion with isolation options
  • Vertical isolation
  • Monobase
  • Pneumatic load support ILS
  • Degauss
  • High frequency analog amplifier
  • Quiet mode
  • Thermal barriers
  • Acoustic enclosures
  • Weatherproof enclosures for cooling blowers
Previous
Next

Medium Shaker Range

Force outputs from 2,050 lbf (9.1 kN) to 8,000 lbf (35.6 kN)

Data Physics’ range of medium-sized shakers are suitable for electronics testing, general purpose automotive, aerospace, MIL-STD testing, and for larger payloads and screening tests.

All SignalForce vibration test systems, or vibration shaker systems, including high quality accessories such as head expanders and slip tables, are manufactured in the USA or the UK by Data Physics.

  • Automatic load support
  • Automatic armature centering
  • Flexure and pogo bearing guidance
  • Safety inter-locks and over-travel detection
  • Vertical isolation mounts (VI)
  • Lin-E-Air isolated trunnions (VH)
  • Monobase with slip tables for sequential three axis testing
  • Air glides and guidance systems
  • Metric or imperial threads
  • Custom designed head expanders
  • External guidance systems
  • Climatic chamber interfaces and barriers
  • V-groove wheels and rails to provide accurate guidance below chambers
  • Head expanders
  • Thermal barriers
  • Acoustic enclosures
  • Weatherproof enclosures for cooling blowers
  • Economy field supply to reduce power consumption

* Armature size options: 340 / 440 / 640 mm.

Large Shaker Range

Force outputs from 11,000 lbf (4.89 kN) to 15,000 lbf (66.7 kN)

Data Physics’ range of large-sized shakers are suitable for electronics testing, general purpose automotive, aerospace, MIL-STD testing, and for larger payloads and screening tests.

All SignalForce vibration test systems, or vibration shaker systems, including high quality accessories such as head expanders and slip tables, are manufactured in the USA or the UK by Data Physics.

  • Automatic load support
  • Automatic armature centering
  • Flexure and pogo bearing guidance
  • Safety inter-locks and over-travel detection
  • Vertical isolation mounts (VI)
  • Lin-E-Air isolated trunnions (VH)
  • Monobase with slip tables for sequential three axis testing
  • Air glides and guidance systems
  • Metric or imperial threads
  • Custom designed head expanders
  • External guidance systems
  • Climatic chamber interfaces and barriers
  • V-groove wheels and rails to provide accurate guidance below chambers
  • Head expanders
  • Thermal barriers
  • Acoustic enclosures
  • Weatherproof enclosures for cooling blowers
  • Economy field supply to reduce power consumption

* Max runtime of 5 minutes.
