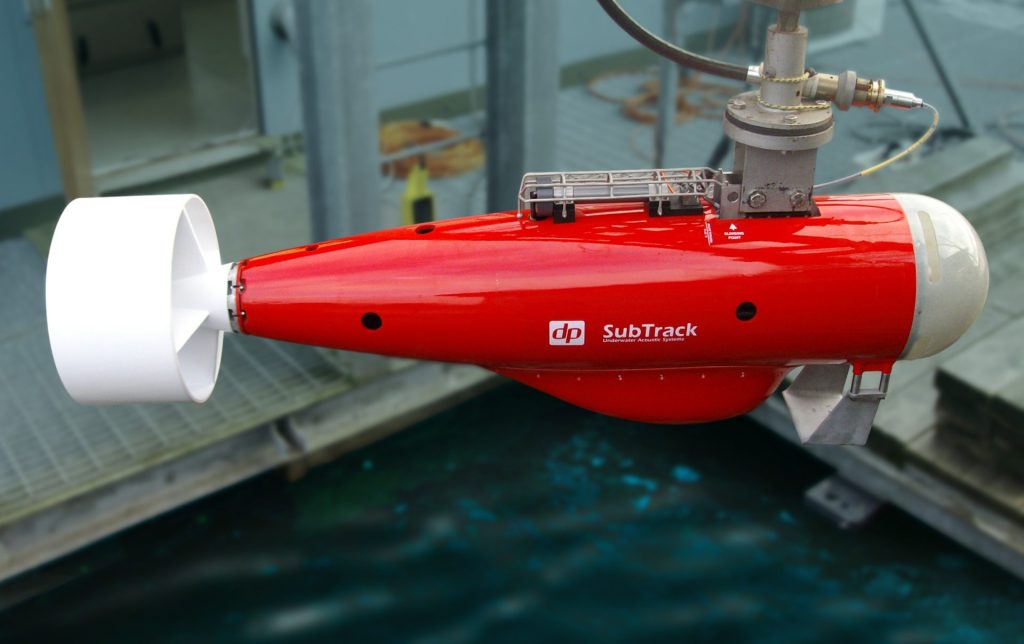

The Data Physics SignalSound Towfish is an underwater towed sound source system comprised of hardware and software used for acoustic testing.

Unleash the Depths: Advanced Underwater Acoustic Testing

A Different World of Testing is Just Below the Surface

Did you know, Data Physics offers a comprehensive range of underwater acoustics products that cater to the diverse needs of industries ranging from naval operations to marine research?

In the world of underwater exploration, research, and naval operations, having the right tools and technology is essential. Data Physics, a renowned leader in the field of underwater acoustics, offers a range of proven products designed to meet the demanding requirements of these industries. In this blog post, we will take a closer look at some of Data Physics’ impressive offerings, including the UW-350 hydrosounder and segmented ring transducers, and explore how they are making waves in underwater testing technology.

Cutaway view of the Data Physics SignalSound Towfish – an underwater towed sound source system comprised of hardware and software capable of signal generation, signal analysis, and data recording.

UW-350 Hydrosounder: Unleashing Versatility

Towed configuration diagram. Hull-mounted system also available.

  1. Hydrophone  2. Pressure Vessel. 3. HF Sphere. 4. Tow Point. 5. UW-350. 6. Depressor

The UW-350 hydrosounder is a testament to Data Physics’ commitment to innovation and excellence in underwater acoustics. This easily transportable device packs a powerful punch, providing a versatile operating bandwidth ranging from 20 Hz to 20 kHz. What sets it apart is its ability to maintain excellent beam patterns up to 1 kHz, making it a valuable tool for a wide range of underwater applications.

One of the standout features of the UW-350 is its impressive average sound pressure level across the operating band, measuring at 165 dB re 1 µPa at 1 m. This level of performance ensures that the hydrosounder can effectively transmit acoustic signals in challenging underwater environments. But that’s not all; the UW-350’s capabilities allow for an operating depth of 188 meters – which can be extended – allowing for deployment on the hull of deep-diving naval submarines. It’s no surprise that the UW-350 is trusted and employed by the navies of numerous countries around the world.

Segmented Ring Transducers Provide Unmatched Performance

Data Physics SignalSound has created the largest free-flooded ring transducer in the world
A Data Physics Ring Transducer

Data Physics also offers a range of systems that incorporate segmented/free-flooded ring transducers. These transducers are designed to operate at resonant frequencies as low as 500 Hz, setting a new standard for underwater acoustics. What’s more, they boast a sound pressure level capability that exceeds 200 dB re 1 µPa at 1 m, demonstrating their exceptional performance.

The range of segmented ring transducers offered by Data Physics is diverse, with options that include rings as large as 1.5 meters in diameter. These come complete with deployment frameworks, cables and winches, ensuring that customers have a comprehensive solution tailored to their specific needs. Whether you’re conducting marine research, naval operations, or underwater exploration, these transducers offer unmatched performance and reliability.

Systems used for Calibration

The SignalSound wide band calibration source features 20 Hz - 100 kHz frequency range and SPL up to 200 dB.
Loading the The SignalSound wide band calibration source

Ensuring the accuracy and reliability of underwater sonar systems is paramount, and Data Physics understands this need. That’s why they offer systems used for calibration, featuring transducers arranged in configurations for towing or static deployment. These systems are meticulously designed to produce excellent beam patterns ranging from 20 Hz to 80 kHz in both horizontal and vertical directions.

Notably, these systems provide an accurate method of setting up and proving the performance of other active and passive sonar systems. This precision is invaluable for research institutions, naval forces, and marine industries where the quality of data and the reliability of equipment can be a matter of utmost importance.

In conclusion, Data Physics stands as a leader in the field of underwater acoustics, offering a comprehensive range of products that cater to the diverse needs of industries ranging from naval operations to marine research. Their commitment to excellence, innovation, and precision makes them a trusted partner for those venturing into the depths of the underwater world.

Data Physics invites you to dive in and discover a world of possibilities beneath the surface.
